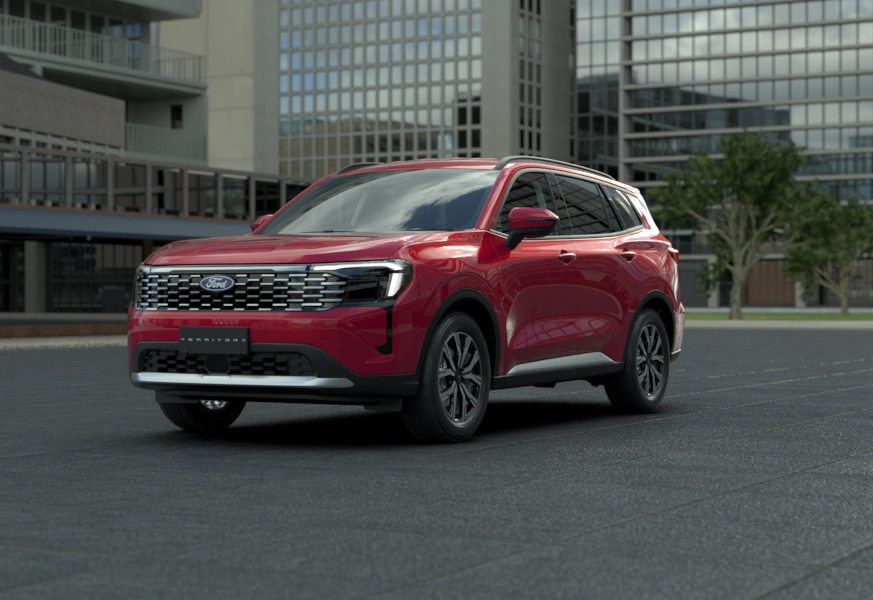

Ruby Red

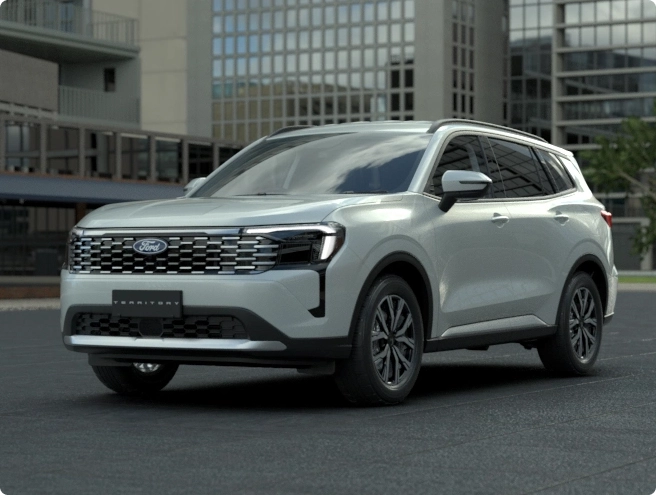

Sleek and Striking Exterior

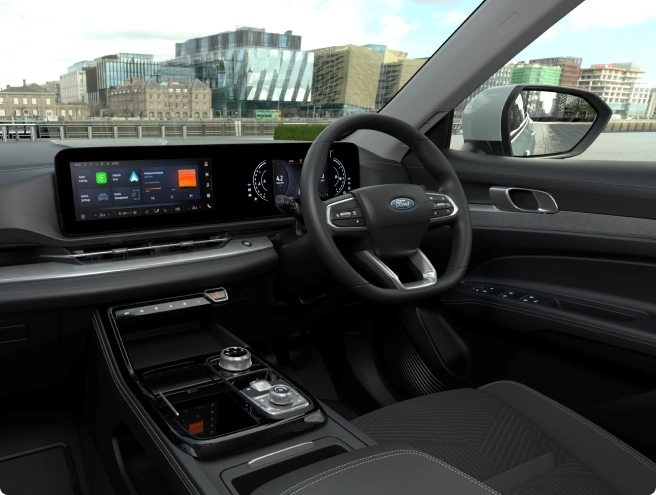

12-Inch Digital Touchscreen

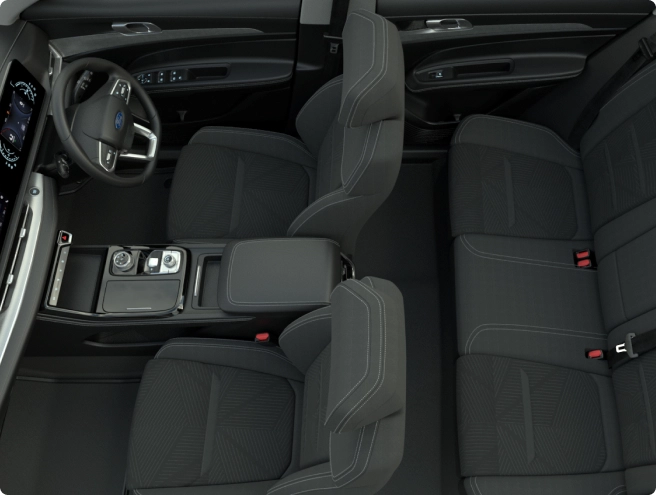

Spacious Rear Seats

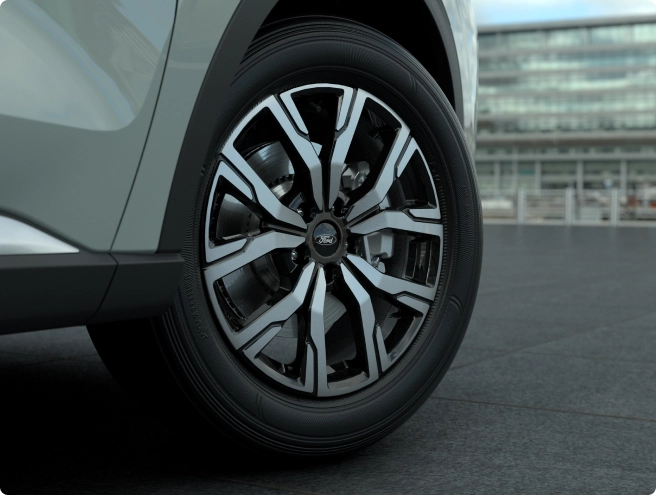

18-Inch Alloy Wheels
Territory Ambiente Specs
Engine & Transmission
ENGINE: 1.8L GTDi EcoBoost ®
Stop/Start
No. of cylinders: 4
Capacity (cc): 1799
Power (kW @ rpm): 138kW@5200rpm
Torque (Nm @ rpm): 318Nm@1750-3000rpm
Fuel requirement: Unleaded
Territory Badge
Drive Configuration: FWD
Type: 7-speed automatic
Performance
Fuel Economy – NEDC ℓ / 100km (combined cycle) *: 7.4
CO2 Emission: Combined [g / km] *: 168
Suspension
MacPherson / Multi-Link Independent Suspension
Steering
Type : Rack & Pinion
Electric Power Assisted Steering (EPAS)
Adjustable steering column – Tilt / Telescoping (Rake & Reach)
Brakes
Front discs – Diameter / Width – (mm): 238 / 25
Rear drums – Diameter / Width – (mm): 228 / 48
Wheels and Tyres
Wheels: 18″ Alloy
Tyre size: 235/55 R18
Mini Spare Wheel: T145/80R18
Tyre Pressure Monitoring System (TPMS)
Locking wheel nuts – Running
Locking wheel nuts – Spare
Warning Triangle
Spare wheel jack
Dimensions (mm) - Exterior
Ground Clearance (mm): 190
Length (mm): 4685
Height (mm): 1706
Width with mirrors (mm): 1935
Wheelbase (mm): 2726
Dimensions (mm) - Interior
Front: Head room (mm): 997
Leg room (mm): 1034
Rear: Head room (mm): 971
Leg room (mm): 956
Dimensions (mm) - Other
Fuel Tank (ℓ): 60
Luggage Capacity with Rear Seats Up(ℓ): 448
Luggage Capacity with Folded Rear Seats Down(ℓ): 1422
Gross Combination Mass (GCM ,kg): 3335
Gross Vehicle Mass [GVM. kg]: 2025
Front Track (mm): 1635
Rear Track (mm): 1635
Tare Mass (kg): 1675
Turning Circle (m): 11.36
Maximum Towing Mass (kg): 1310
Safety and Security
Driver Power Door Lock
Anti-locking Braking System (ABS)
Electronic Brake Assist (EBA)
Electronic Stability Control (ESC)
Hill Launch Assistance (HLA)
Cruise Control
Parking Sensors – Front & Rear
6 Airbags: Dual Front, Side, Curtain
ISOFIX Child Seat Fixings for Rear Outboard Seats
Key Knob / Remote Starter
Fuel Status
Thatcham Alarm
Child Proof Rear Door Locks – Manual
Keyless Entry and Keyless Start w/ Push-Button Start
Front 3-point Seat belts w/ Load Limiter and Pretensioners
Front Seatbelt Manual Height Adjustment – Driver and Passenger
Beltminders – Driver, Passenger and Rear
Interior Convienience
Selectable Drive Modes
Rotary Gear Shifter Knob
Electric – Hand Brake
Steering Wheel Multi-Media Controls
Trip Computer
Center Console with Covered Bin and Armrest – Flip
Cupholder X8 (x4 Front and x4 Rear)
Overhead Console w/ Sunglass Holder
Headliner Interior – Light Grey
Front Sun Visors
Front Map Lights
Illuminated Vanity Mirrors (Driver & Passenger)
Rear Courtesy Lamp on Both Sides
Grab handles / Assist Grip – Passenger and Rear
Floor Carpets – Front and Rear
Driver Foot Rest
Seats
Seat trim – Black Cloth
Driver Seat Adjust: Manual 6-way adjust
Passenger Seat Adjust: Manual 4-way Adjust
Front Seats 2-way head restraints
Seat Map Pockets – driver and passenger seats
Rear Seat Headrest – height adjustable
Package Tray ***
Rear Centre Armrest w/ Cupholder
Second row 60 / 40 folding seat cushion
Audio
In-Vehicle Infotainment System with Voice Recognition,Apple CarPlay® and Android AutoTM
Bluetooth
Windscreen Mount USB (Charging)
12V Front Power Plug
7″ Cluster TFT w/ Two Analog Gauges
12″ Coloured Touchscreen
Speakers x 6
Ford App
Remote Vehicle Lock / Unlock
Remote Start / Stop
Vehicle Status
Vehicle Locator
Vehicle Health & Alerts
Exterior Styling
Body Coloured Painted Roof
Front Mud Flaps
Black Grille
Liftgate – Manual
Front Bumper Painted Body Colour
Rear Bumper Painted Body Colour
Exterior Mirrors – Body Colour
Exterior Door Handles – Body colour
Exterior Mirrors – Manual Fold
Roof Rack: Black
Front Towing Hooks
Rear Towing Hooks
Locking capless fuel filler
Exterior Lighting
Rear LED Tail Lamps
LED DTRLs (Day Time Running Lamps)
Windows
Power Front Windows and Rear One-Touch Up / Down Function
Rain sensing wipers
Rear wash / wipers
Privacy Glass (2nd Row)
Electric Rear Window Defroster
Exterior Paint
Star White

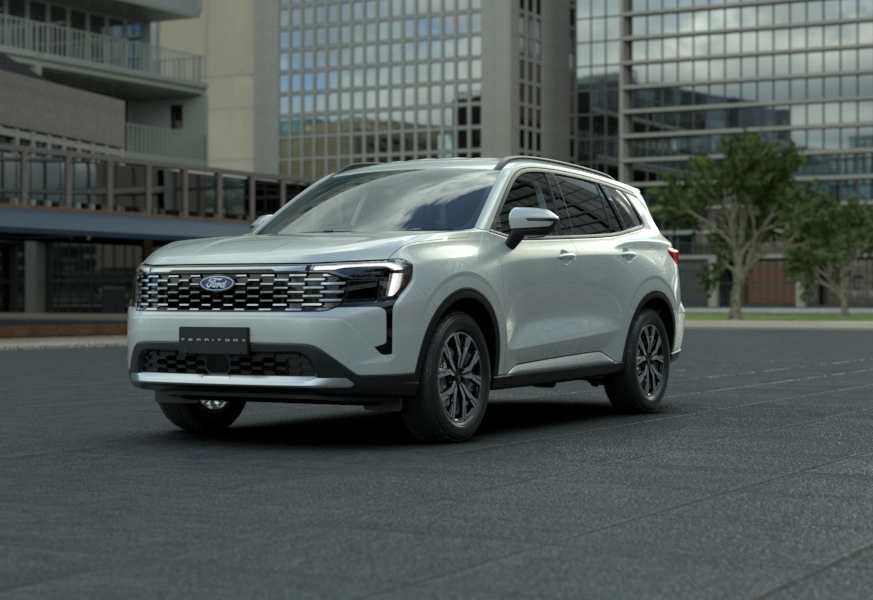

Crystal Pearl White
Moonstone Blue
Panther Blue

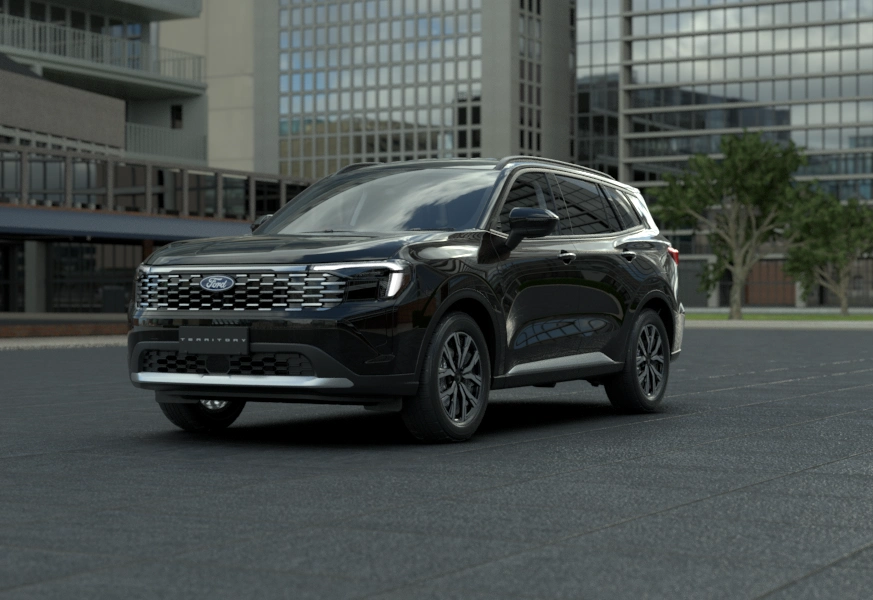

Panther Black
Cactus Grey
Oasis Green
Lustrous Grey
Ruby Red
Ford Protect
Service intervals: 15 000 km
Service plan: 6 years or 90 000km (O)
